High Speed Dewatering Machine

high-speed-dewatering-machine-01

Description

The first stage in the drying process in our standard PET bottle washing line, the high speed dewatering machine has the unique ability to remove a large portion of water content within the PET flakes directly after the washing process. To accomplish this, centrifugal force is used to spin water outwards while the PET flakes are contained within.

How It Works

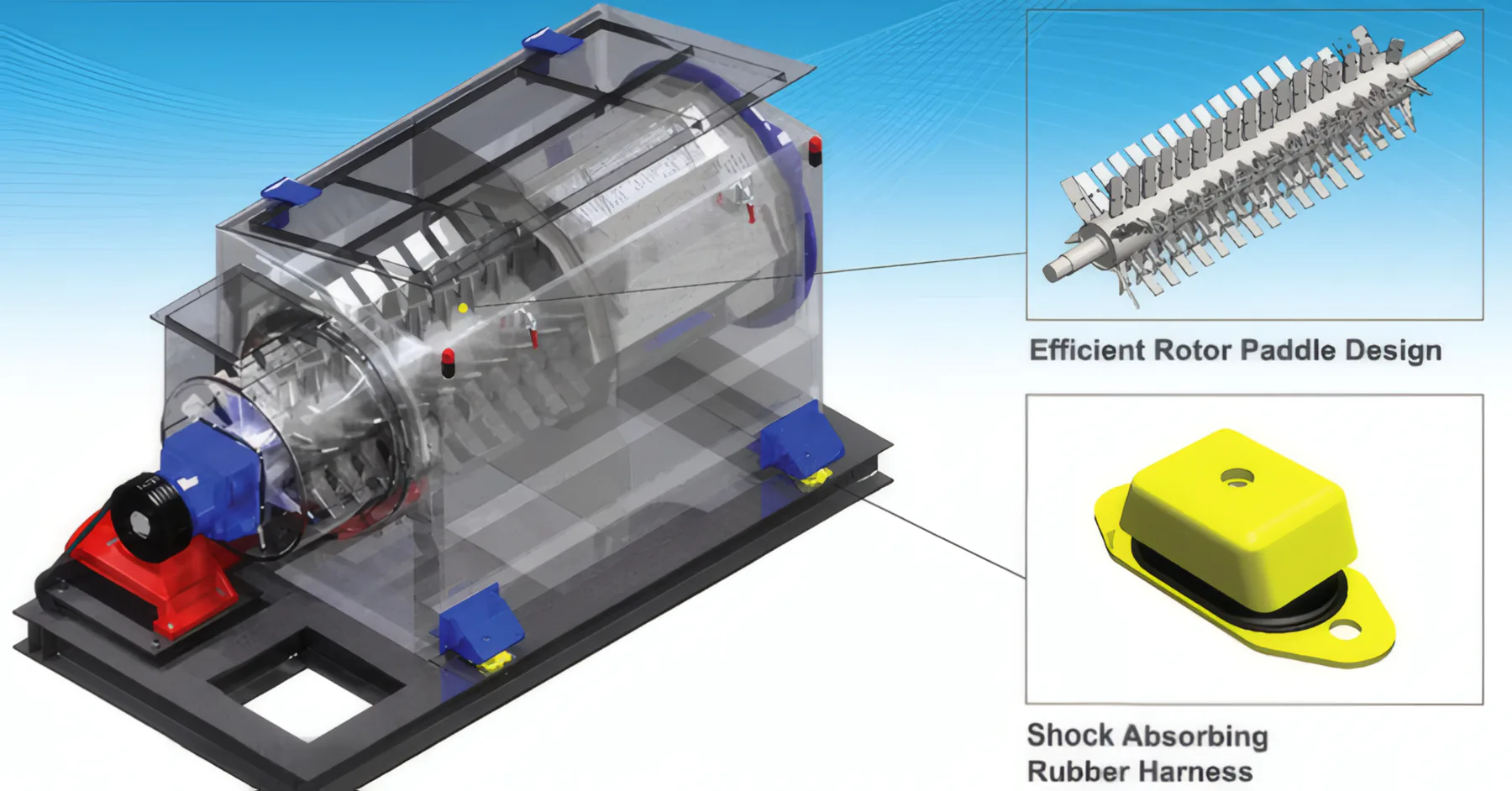

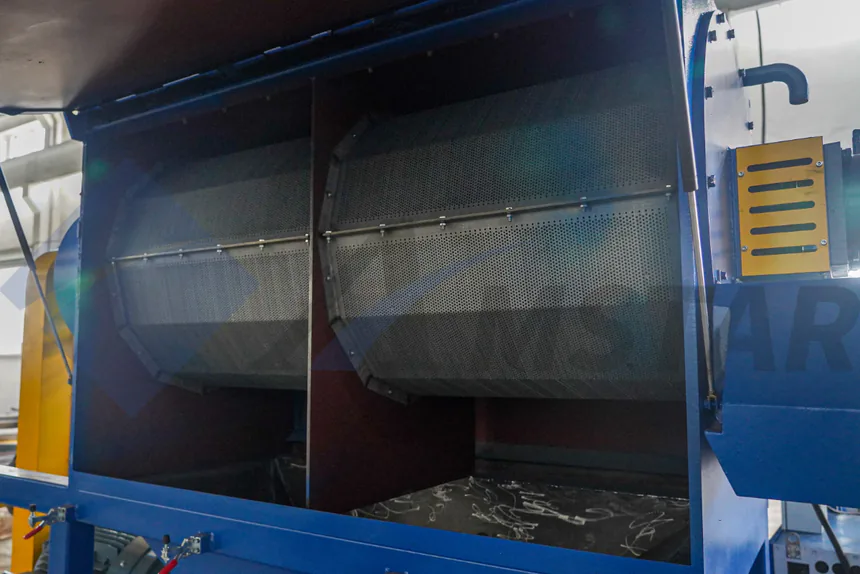

This horizontal centrifuge is very similar in structure to our high speed friction washer. At the core of both machines is a long shaft mounted with many panels or paddles spun by an electric motor. Surrounding the paddled shaft is a mesh screen tunnel. The entire apparatus is then encased in a metal container.

As the slurry PET flakes are fed into the vertical feeder, the spinning shaft that spins at nearly 1,000 rotations per minute continuously thrown the PET flakes outwards against the mesh screen tunnel. Water passes through the mesh screen and is collected for recycling while the PET flakes are contained within. The PET flakes, now partially dried, moves onto the next drying equipment, usually a thermal dryer. Generally, ASG’s dewatering machine will lower the PET flake’s moisture content to roughly 15-20%.

Models & Specifications

Model #: Motor Power: Main Shaft Diameter: Rotating Speed: Capacity:
HXJ400 37KW 400mm 1400 RPM 400 – 800 KG/H
HXJ550 45KW 550mm 1200 RPM 600 – 1000 KG/H
HXJ750 55KW 750mm 1080 RPM 1200 – 2000 KG/H



Additional Images

high-speed-dewatering-machine-02

Place An Order

The general lead time for all single-piece, standard equipment orders is 30 days. For custom orders or complete washing lines, the lead time is between 60 – 90 days. The actual lead time will depend heavily on the complexity of the project as well as the amount of machinery we have in queue at the time of your order.

Contact us to discuss pricing and ordering details. Here is a brief summary of our ordering procedures.



Related Machinery

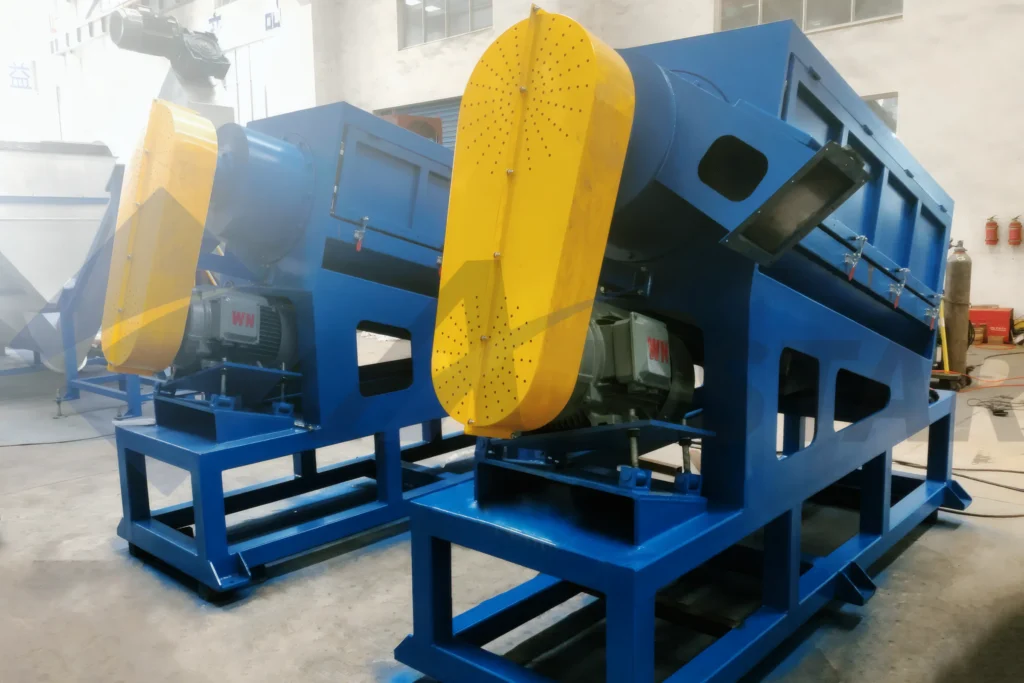

High Speed Friction Washer
Debaler Machine
PET Bottle Washing Line (2019 Update)
