High Speed Friction Washer

high-speed-friction-washer-05

Description

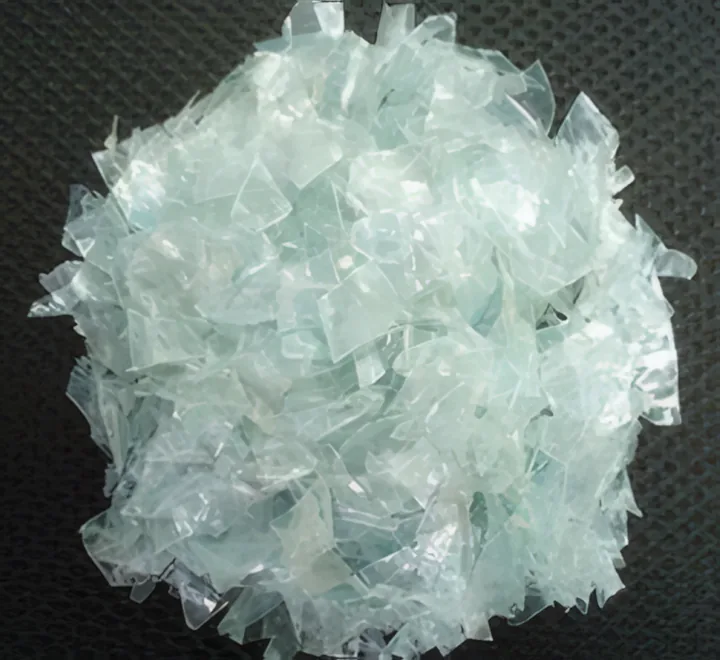

pet-bottle-flakes-cleanedA brilliant cold washing machine, the high speed friction washer is a truly efficient piece of machinery for cleaning PET flakes via the use of friction. In the case of our standard PET bottle washing line, the friction washer used cold water to further scrub the dirt loose directly after the hot washing process.

How It Works

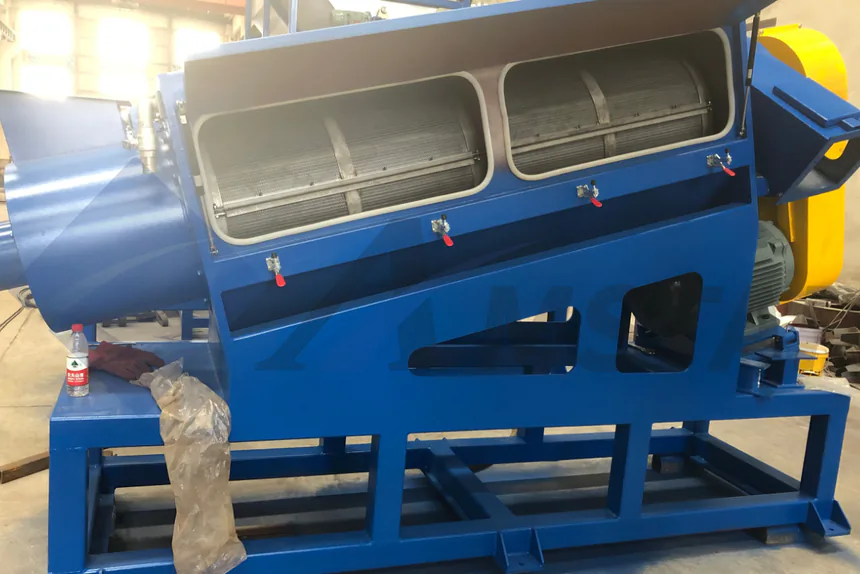

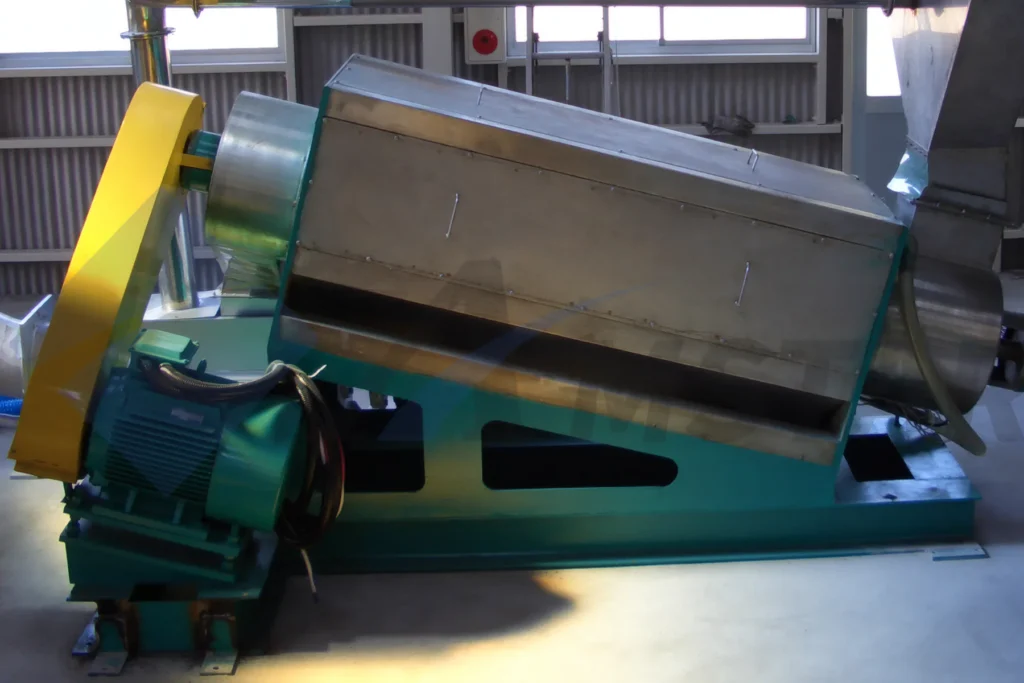

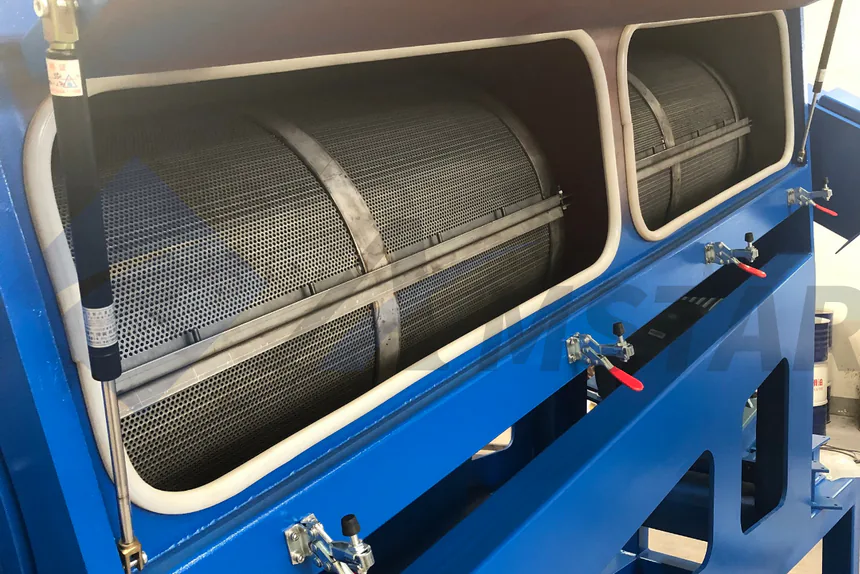

At the center of ASG’s high speed friction washer lies a long, fast-spinning shaft with many tilted panels / paddles mounted. Surrounding the rotating shaft is a mesh screen tunnel used for dewatering and filtrating small contaminants such as dirt. A large retangular case surrounds the entire apparatus where water jets and nozzles are aimed at the mesh screen. The entire machine is set at an incline, around 15 degrees, where the dirty PET flakes are feed into a vertical feeder located on the lower end. The clean PET flakes exit through the higher end where it moves onto the drying phase.

The rotating shaft within ASG’s friction washer spins at nearly 1,000 rotations per minute. As the PET flakes enter this machine, the material is mixed at high speeds within the washer where friction between each PET flake helps scrub off dirt and debris. Water is continuously added via water jets that spray at the mesh screen preventing potential clogging that may occur.

Models & Specifications

Model #: Motor Power: Main Shaft Diameter: Rotating Speed: Capacity:
HXJ400 37KW 400mm 1400 RPM 400 – 800 KG/H
HXJ550 45KW 550mm 1200 RPM 600 – 1000 KG/H
HXJ750 55KW 750mm 1080 RPM 1200 – 2000 KG/H



Additional Images

high-speed-friction-washer-04

high-speed-friction-washer-02

high-speed-friction-washer-03

high-speed-friction-washer-01

Place An Order

The general lead time for all single-piece, standard equipment orders is 30 days. For custom orders or complete washing lines, the lead time is between 60 – 90 days. The actual lead time will depend heavily on the complexity of the project as well as the amount of machinery we have in queue at the time of your order.

Contact us to discuss pricing and ordering details. Here is a brief summary of our ordering procedures.
