Thermal Dryer

thermal-dryer

Description

ASG’s thermal dryer is the final drying apparatus in our PET bottle washing line. Using high heat to dehydrate moisture from the PET flakes, this continuos drying apparatus is strategically placed after the dewatering machine where moisture levels are initially reduced to approximately 20-30%. The thermal dryer reduces moisture levels further to below 1%.

How It Works

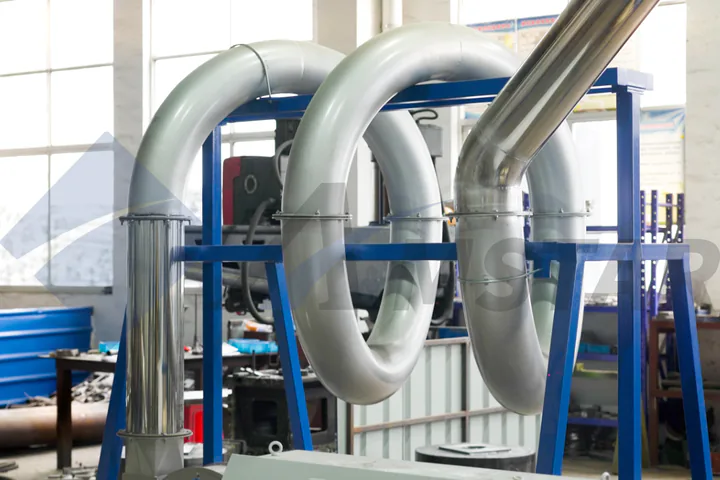

thermal-dryer-01Thermal dryers use hot air to dry the PET flakes, much like a hair dryer. After dewatering, the PET flakes are vacuumed out by a transport blower and mixed with hot air traveling through a long set of stainless steel tubing that winds back and forth. As the PET flakes mix and spin around within this lengthy transport tunnel, moisture is effectively dehydrated. Ending with a cyclone separation apparatus where cool air is mixed in, residual moisture is further reduced. The cyclone separator is the last stand against any dust and fines within the material stream.

Depending on the capacity of the PET bottle washing line, the use of one thermal heater is usually enough. However, to ensure the lowest possible moisture levels, some PET washing plants may request the use of two or even three thermal spiral heaters that are positioned in a row.

Specifications

Model # Blower Power Heating Power Pipe Diameter Pipe Material
RSJ800 5.5 KW 36 KW ⌀159mm Type 304 Stainless Steel



Place An Order

The general lead time for all single-piece, standard equipment orders is 30 days. For custom orders or complete washing lines, the lead time is between 60 – 90 days. The actual lead time will depend heavily on the complexity of the project as well as the amount of machinery we have in queue at the time of your order.

Contact us to discuss pricing and ordering details. Here is a brief summary of our ordering procedures.



Related Machinery

Label Separator
Trommel For PET Bottles
PET Bottle Washing Line (2019 Update)
