High Speed Friction Washer (2018 Model)

pet-flakes-friction-washer 01

Description

This is a brilliant cold-washing machine system for throughly cleaning PET flakes. The high speed friction washer is a highly efficient piece of machinery for cleaning plastic flakes via the use of friction. In the case of our standard washing line, the friction washer used cold water to further scrub the dirt loose directly after the hot washing process.

How it works

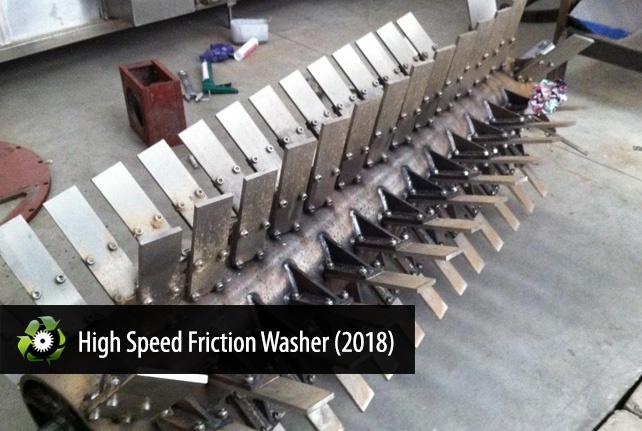

At the center of ASG’s high speed friction washer lies a long, fast-spinning shaft with many tilted panels / paddles mounted. Surrounding the rotating shaft is a mesh screen tunnel used for dewatering and filtrating small contaminants such as dirt. A large retangular case surrounds the entire apparatus where water jets and nozzles are aimed at the mesh screen. The entire machine is set at an incline, around 15 degrees, where the dirty plastic flakes are feed into a vertical feeder located on the lower end. The clean flakes exit through the higher end where it moves onto the drying phase.

The rotating shaft within ASG’s friction washer spins at nearly 1,000 rotations per minute. As the Plastic flakes enter this machine, the material is mixed at high speeds within the washer where friction between each plastic flake helps scrub off dirt and debris. Water is continuously added via water jets that spray at the mesh screen preventing potential clogging that may occur.

Additional Images

PET-flakes-washer-01

PET-flakes-cold-washer

Place an Order

The general lead time for all single-piece, standard equipment orders is 30 days. For custom orders or complete washing lines, the lead time is between 60 – 90 days. The actual lead time will depend heavily on the complexity of the project as well as the amount of machinery we have in queue at the time of your order.

Contact us to discuss pricing and ordering details. Here is a brief summary of our ordering procedures.



Related Machinery

2,000 KG/H PET Bottle Washing Line Photos
PET Flakes Continuous-Running Hot Washer
Sink Float Tank (2019 Model)
