Label Separator

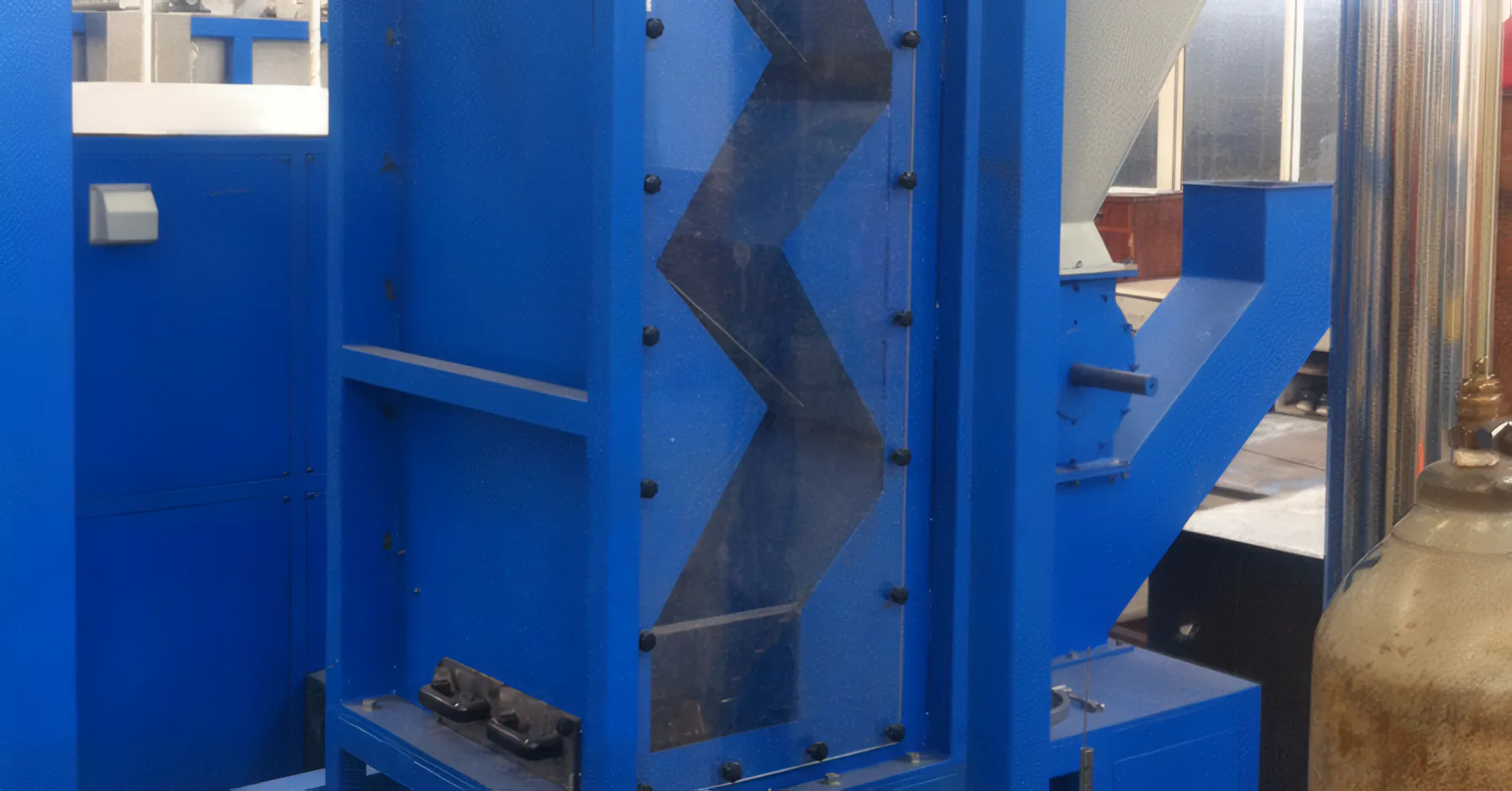

label-separator

Description

label-separator-diagramThe label separator, sometimes referred to as the “air classifer” uses air pressure to separate heavier materials from lighter ones. As PET bottles are shredded whole, the material stream from the granulator will include a portion of PP / PE films from on the bottle labels. The label separator does an excellent job of this separating PET flakes from plastic film labels.

How It Works

The mixture of PET flakes and PP/PE labels enter a sorting chamber containing a column of raising air. As the material mixes and is blown upwards, the PP / PE films (the lighter material) are blown upwards and are stored in a collection tank while the PET flakes (the heavier material) drop through the bottom and continue onto the next piece of machinery.

Models & Specifications

Blower Motor: 5.5 KW
Rotary Valve Motor: 1.5 KW
Rotary Valve Diameter: ⌀270mm
Rotary Valve
Rotating Speed:
50 RPM
Cyclone Separator Volume: 600 L



Additional Images

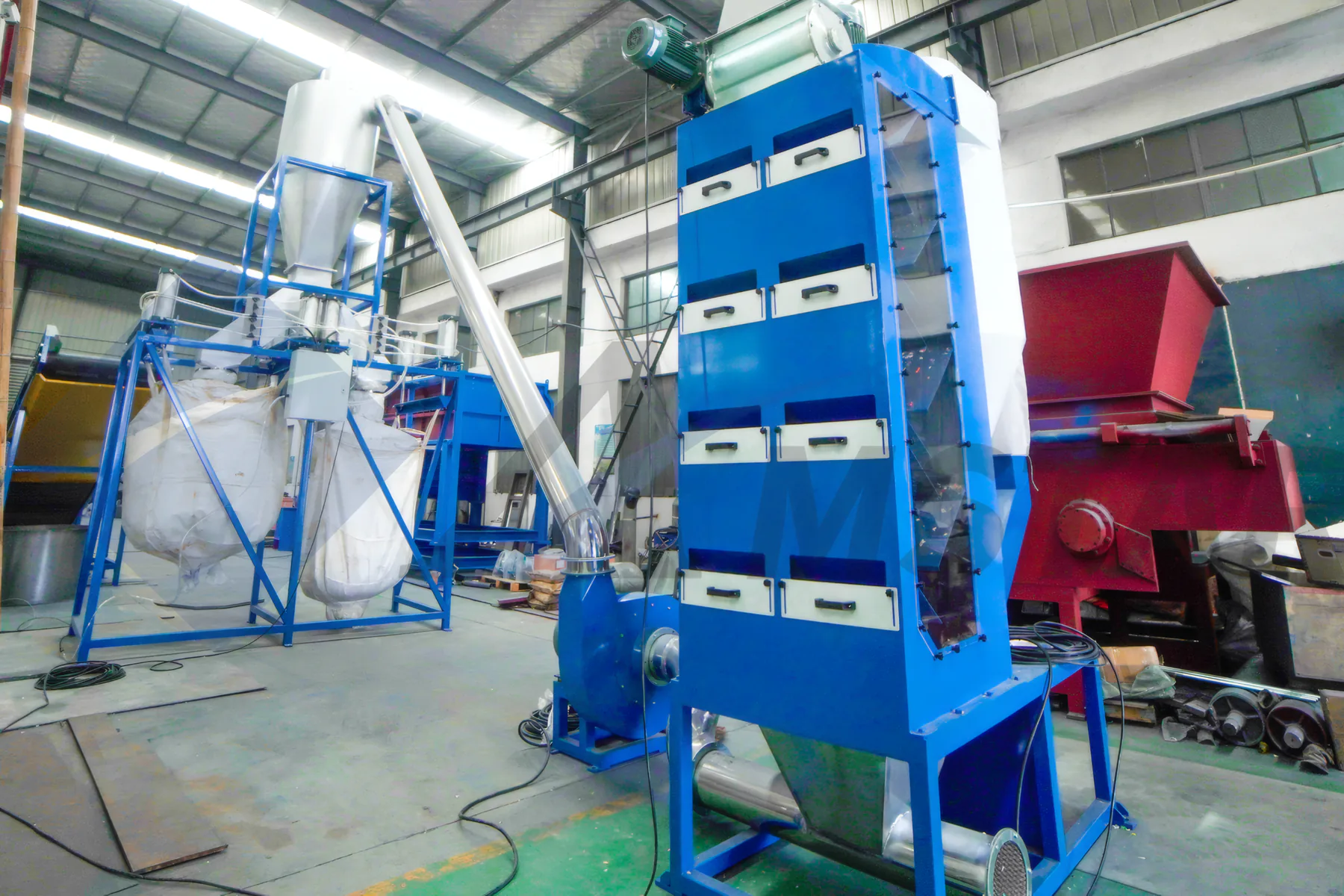

label-separator-large

Place An Order

The general lead time for all single-piece, standard equipment orders is 30 days. For custom orders or complete washing lines, the lead time is between 60 – 90 days. The actual lead time will depend heavily on the complexity of the project as well as the amount of machinery we have in queue at the time of your order.

Contact us to discuss pricing and ordering details. Here is a brief summary of our ordering procedures.



Related Machinery

Plastic Granulator
Hot Washer For PET Flakes

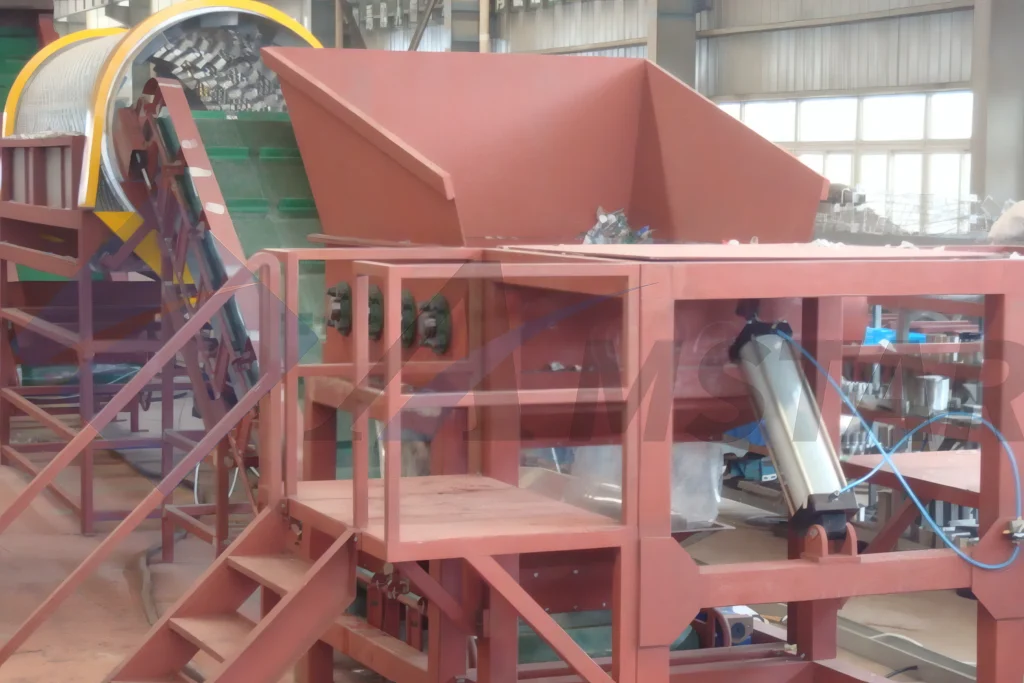

Debaler Machine
